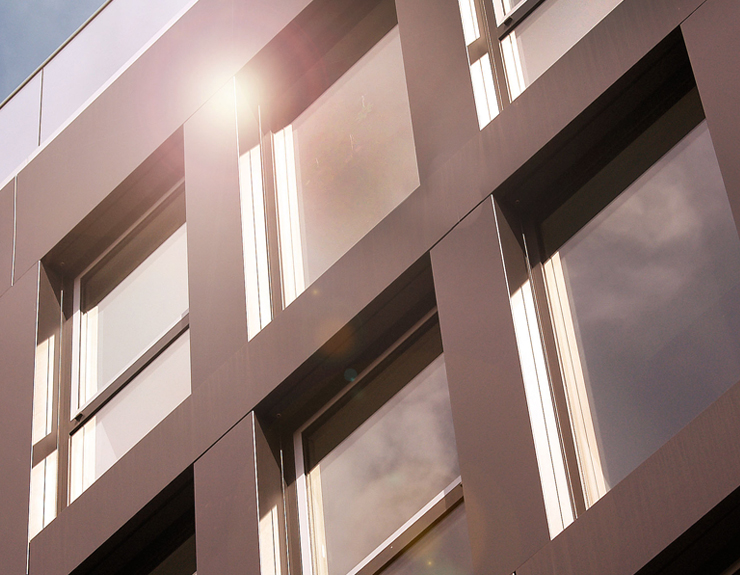

HUECK TRIGON 幕墙系统

Elegant design combined with simple processing and expert support. from the construction draft through to completion.

Regardless of whether the owner is planning a hotel, an industrial building, a school or premium housing – HUECK Trigon makes it possible. The philosophy of simple processing comes into effect here, as do the possibilities for elegant and functional design. The advantage: HUECK's constructors and experts are at your side from the start with their competence from over 1000 buildings. And we won't leave you by yourself in the construction phase through to completion.

Try us – whether you are planning vertically, slanted, round or in clusters,
HUECK Trigon can do everything.

  • For perpendicular, sloping, flat and polygonal façade surfaces

  • Identical profile geometry for mullions and transoms, mullion offcut can be used as transoms

  • 型材厚度从 32 to 263.5 mm

  • Various cover profiles

  • Possible as SG façade

  • Cross-series system components: hardware, accessories, supplementary profiles, auxiliary accessories and tools

  • Mullion-transom connector approved by the building inspectorate

  • Highly thermally insulating and passive house certified

  • Integration of a wide variety of elements from all HUECK systems possible

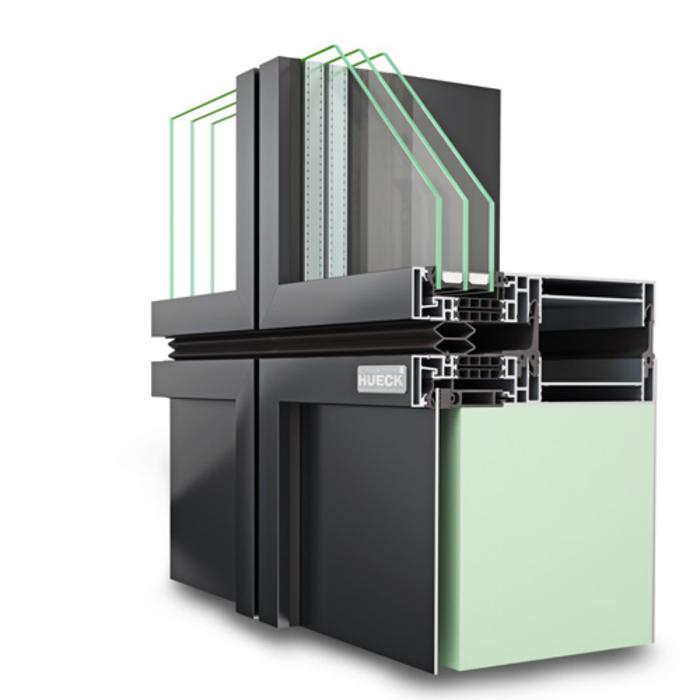

HUECK TRIGON 50 幕墙系统

结构

  • 高隔热铝合金幕墙系统,构件式幕墙结构可选择垂直,斜框,水平或多边框结构

  • 横框竖框型材结构相同

  • 玻璃厚度从 4mm到58 mm

  • 可与HUECK系统其它门窗单元体相结合

可视面宽度

  • 不同结构的型材框架可视面宽度为50mm

型材厚度

  • 根据隔热要求, 32mm至264 mm

隔热区域

  • 工厂复合的带强化玻璃纤维的隔热条

  • 多种形式的可置入式隔热泡沫条,满足不同隔热需求

胶条

  • 全有结构连接处接合区域使用异形胶条覆盖

  • 玻外胶条可选择单片或双片EPDM胶条

  • 可不使用密封材料置入

检测结果

  • 适用于被动屋, ift准则 WA 15/2

  • 水密性 RE 1200, 力学数值 250 Pa / 750 Pa (EN 12154)

  • 气密性 AE (EN 12152)

  • 抗风压 2.4 kN/m2 最大负荷  3.6 kN/m2 increased load (EN 12179)

  • 防弹等级 达到 FB 4-NS

  • 防盗等级 WK 1 / WK2 / WK3 (ENV 1627)

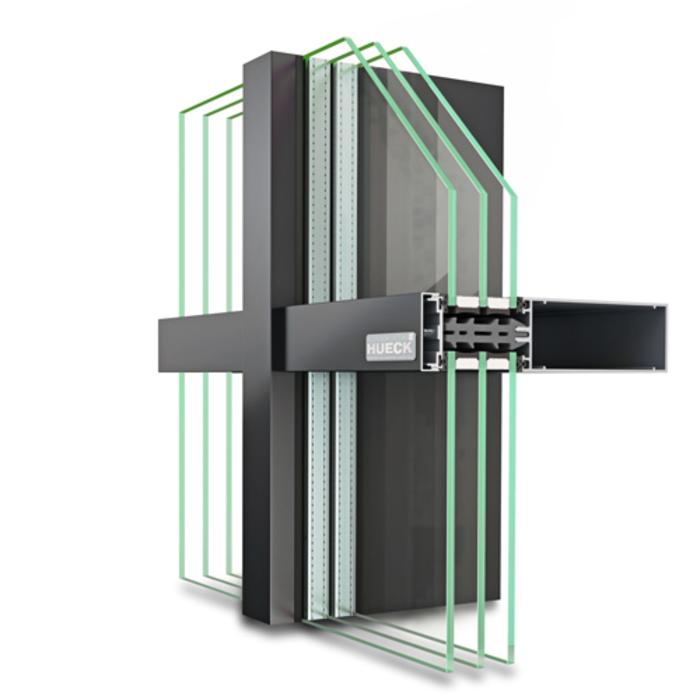

HUECK TRIGON 60 幕墙系统

结构

  • 高隔热铝合金幕墙系统,构件式幕墙结构可选择垂直,斜框,水平或多边框结构

  • 横框竖框型材结构相同

  • 玻璃厚度从 4mm到58 mm

  • 可与HUECK系统其它门窗单元体相结合

可视面宽度

  • 不同结构的型材框架可视面宽度为60mm

型材厚度

  • 根据隔热要求, 32mm 至 264 mm

隔热区域

  • 工厂复合的带强化玻璃纤维的隔热条

  • 多种形式的可置入式隔热泡沫条,满足不同隔热需求

胶条

  • 全有结构连接处接合区域使用异形胶条覆盖

  • 玻外胶条可选择单片或双片EPDM胶条

  • 可不使用密封材料置入

检测结果

  • 适用于被动屋, ift准则 WA 15/2

  • 水密性 RE 1200, 力学数值 250 Pa / 750 Pa (EN 12154)

  • 气密性 AE (EN 12152)

  • 抗风压 2.4 kN/m2 最大负荷  3.6 kN/m2 increased load (EN 12179)

  • 防弹等级 达到FB6-S (EN 1522-1)

  • 防盗等级 WK 1 / WK2 / WK3 (ENV 1627)

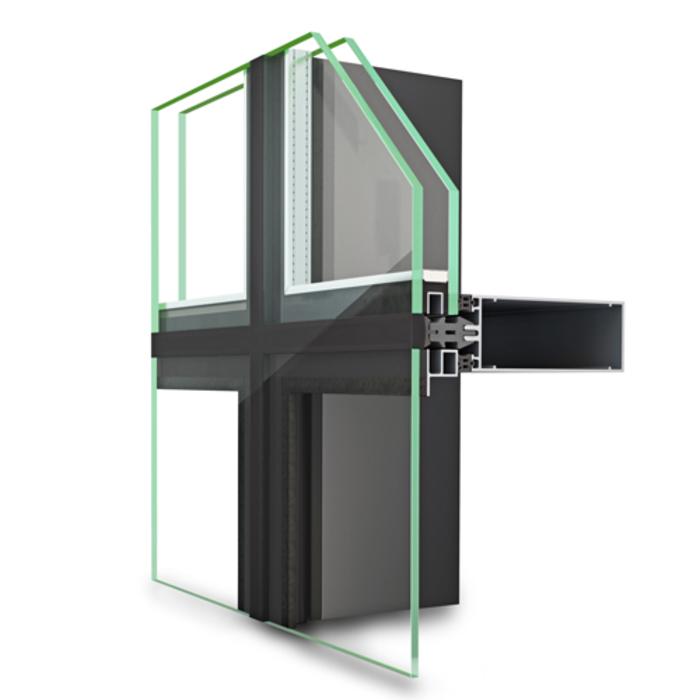

HUECK TRIGON 50 D 幕墙系统

结构

  • 高隔热铝合金幕墙系统,构件式幕墙结构可选择垂直,斜框,水平或多边框结构

  • 横框竖框型材结构相同

  • 玻璃厚度从 20mm 到 58 mm

  • 可与HUECK系统其它门窗单元体相结合

可视面宽度

  • 不同结构的型材框架可视面宽度为50mm

型材厚度

  • 根据隔热要求, 32mm 至 204 mm

隔热区域

  • Insulating profiles made of glass fibre-reinforced plastic

  • Foamed insulating profiles for increased thermal insulation

胶条

  • 全有结构连接处接合区域使用异形胶条覆盖

  • 玻外胶条可选择单片或双片EPDM胶条

  • 可不使用密封材料置入

检测结果

  • 隔热数值: Uf= 1.0 – 3.2 W/m²K

  • 水密性:  static RE 1200, dynamic 250 Pa / 750 Pa (EN 12154 RE 1200)

  • 气密性 AE (EN 12152)

  • 抗风压: permitted load 2.4 kN/m², increased load 3.6 kN/m², (EN 13116)

  • 防弹等级 达到 FB6-S

  • 防盗等级 WK 1 / WK2 / WK3 (ENV 1627)

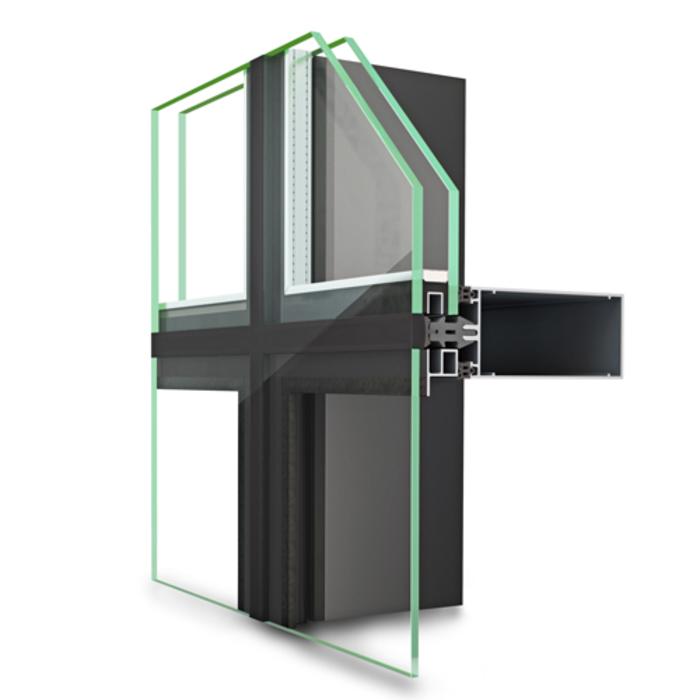

HUECK TRIGON 60 D 幕墙系统

结构

  • 高隔热铝合金幕墙系统,构件式幕墙结构可选择垂直,斜框,水平或多边框结构

  • 横框竖框型材结构相同

  • 玻璃厚度从 20mm到58 mm

  • 可与HUECK系统其它门窗单元体相结合

可视面宽度

  • 不同结构的型材框架可视面宽度为60mm

型材厚度

  • 根据隔热要求, 32mm至204 mm

隔热区域

  • 工厂复合的带强化玻璃纤维的隔热条

  • 多种形式的可置入式隔热泡沫条,满足不同隔热需求


HUECK TRIGON 50 SG 幕墙系统

Construction

  • All-glass facade construction with 22 mm silicone weather seal for vertical and inward inclined even or polygonal curtain walls

  • European approval ETA 09/0335

  • Maximum pane size 3000 mm x 5000 mm

  • Easy and quick installation of the glass units

Elevation width

  • Transom and cover profiles with an elevation width of 50 mm

Profile depth

  • In accordance with static requirements between 32 and 194 mm

Insulating zone

  • Insulating profiles made of glass fi bre-reinforced polypropylene

  • Foamed insulating profiles for increased thermal insulation

Gaskets

  • Vulcanised shaped gasket pieces covering the entire joint area are used in the transom connection area

Test results

  • Uf = 0.88 – 1.5 W/m2K

  • Water tightness RE1200 (EN 12154)

  • Air permeability 4A (EN 12152)

  • Resistance to wind load 2400 / 3600 Pa (EN 13116)

  • Impact strength I5 / E5 (EN 14 019)

  • Sound reduction Rw,P up to 45 dB (EN ISO 140 - 3)

  • Burglar resistance WK2, WK3 (ENV 1627)

  • System test "Crash-safe glazing in accordance with TRAV"

  • European approval ETA-13/0675


HUECK TRIGON 60 SG 幕墙系统

Construction

  • All-glass facade construction with 22 mm silicone weather seal for vertical and inward inclined even or polygonal curtain walls

  • European approval ETA 09/0335

  • Maximum pane size 3000 mm x 5000 mm

  • Easy and quick installation of the glass units

Elevation width

  • Elevation width of transom and cover profiles 60 mm

Profile depth

  • In accordance with static requirements between 32 and 194 mm

Insulating zone

  • Insulating profiles made of glass fibre-reinforced polypropylene

  • Foamed spacer profiles for increased thermal insulation

Gaskets

  • Vulcanised shaped gasket pieces covering the entire joint area are used in the transom connection area

Test results

  • Uf = 0.88 – 1.5 W/m2K

  • Water tightness RE1200 (EN 12154)

  • Air permeability 4A (EN 12152)

  • Resistance to wind load 2400 / 3600 Pa (EN 13116)

  • Impact resistance I5 / E5 (EN 14 019)

  • Sound reduction Rw,P bis 45 dB (EN ISO 140 - 3)

  • Burglar resistance WK2, WK3 (ENV 1627)

  • System test "Crash-safe glazing in accordance with TRAV"

  • European approval ETA-13/0675


HUECK TRIGON UNIT L 幕墙系统

Construction

  • Thermally insulating aluminium facade design as a unit construction for vertical, polygonal curtain walls

  • Optimised profile geometry with regard to weight and statics values

  • Glass thickness between 2 and 50 mm

  • Different insert elements from the HUECK system possible

Elevation width

  • Frame and mullion profiles with an elevation width of 33 mm or 50 mm and 75 mm

Profile depth

  • Frame profile with 137 mm, mullion profile depending on static requirements from 50 mm to 137 mm

Gaskets

  • Internal sealing profiles available as vulcanised frames or as metre-length material

  • Weather-independent, can be inserted on site without sealing material

Test results

  • Uf ≥ 0.93 W/m2K

  • Water tightness static: RE 1200 (BS-EN 12154 and CWCT section 6)

  • Water tightness dynamic: 300 Pa / 900 Pa EN 13050

  • Air permeability class AE 900 EN 12152

  • Resistance to wind load: 2400 Pa / 3600 Pa EN 12179

  • Impact resistance: I5/E5 (EN 14019)

  • Burglar resistance: RC2 (EN 1627)

  • Seismic resistance: in accordance with (AAMA 501.4:2000)

  • Tests in accordance with CWCT, ASTM and AAMA
